923R Recessed with trim light-W120*H50，Direct light Can connect without end caps --ZHEJIANG MODENG LIGHTING TECHNOLOGY CO.,LTD.

Back


Power	LWH(mm)	Lumen/Power	Item No
Low	118012050	2000lm/20W	923S.K220W
	147012050	2500lm/25W	923S.K225W
	234012050	4000lm/40W	923S.K140W
Medium	118012050	2800lm/28W	923S.K228W
	147012050	3500lm/35W	923S.K235W
	234012050	5600lm/56W	923S.K256W


Material & technology

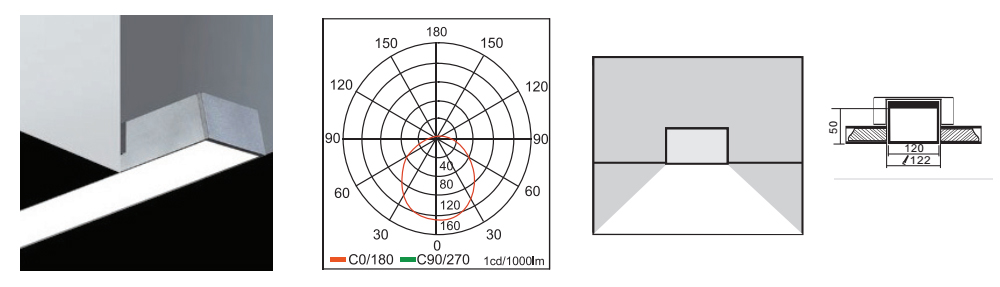

Light distribution：Direct Light

Light source：High brightness SMD LED, or T5 (G5)

Color rendering：CRI≥80, can customize CRI≥90

CCT：3000K, 4000K, 6500K, can customize 5000K

Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

Diffuser：Opal prismatic diffuser with high transmittance and uniformity light End caps material：ABS

IP：20

Connection：Can make shadowless continuous lighting system

Installation：S-Suspended, C-Ceiling mounted,R-Recessed without trim

~~<i id='51d1f'><strike id='60cfa'><tt id='8e40a'><pre id='d0c87'></pre></tt></strike></i>~~

923R Recessed with trim light
